Three Phase Cast Resin Transformers CE ISO Epoxy Resin Transformer
| MOQ: | 1unit |
| Price: | $5000-$100000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
CE,ISO
Model Number
SCB10
Highlight:
cast resin transformers ce
,three phase cast resin transformers
Product Description

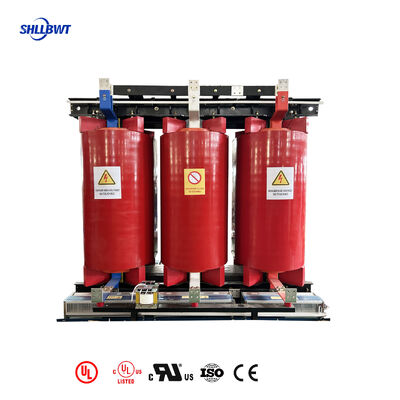

Three Phase Cast Resin Transformer Dry Type
Product Overview
High-performance three phase cast resin dry type transformer designed for industrial applications with exceptional reliability and safety features.
Technical Specifications
| Rated Capacity (KVA) | High Voltage (KV) | Low Voltage (KV) | Connection Symbol | No-Load Loss (W) | On-Load Loss (W) | No Load Current (%) | Weight (KG) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 10 | 6 | 0.4 | Dyn11 | 0.15 | 0.325 | 4.1 | 130 | 4 |
| 30 | 6.3 | Yyn0 | 0.215 | 0.75 | 3.2 | 260 | ||
| 50 | 10 | 0.305 | 1.055 | 2.8 | 315 | |||
| 80 | 10.5 | 0.415 | 1.46 | 2.6 | 470 | |||
| 100 | 11 | 0.45 | 1.665 | 2.4 | 520 | |||
| 125 | 0.53 | 1.955 | 2.2 | 585 | ||||
| 160 | 0.61 | 2.25 | 2.2 | 670 | ||||
| 200 | 0.7 | 2.675 | 2 | 790 | ||||
| 250 | 0.81 | 2.915 | 2 | 920 | ||||
| 315 | 0.99 | 3.67 | 1.8 | 1085 | ||||
| 400 | 1.1 | 4.22 | 1.8 | 1320 | ||||
| 500 | 1.305 | 5.165 | 1.8 | 1520 | ||||
| 630 | 1.46 | 6.31 | 1.6 | 1820 | 6 | |||
| 800 | 1.71 | 7.36 | 1.6 | 2105 | ||||
| 1000 | 1.99 | 8.6 | 1.4 | 2550 | ||||
| 1250 | 2.35 | 10.26 | 1.4 | 2900 | ||||
| 1600 | 2.755 | 12.42 | 1.4 | 3490 | ||||
| 2000 | 3.735 | 15.3 | 1.2 | 4220 | ||||
| 2500 | 4.5 | 19.53 | 1.2 | 4955 |
Production Process
Performance Characteristics
- Moisture-proof and corrosion-resistant capability, capable of normal operation at 100% humidity, especially suitable for extreme environmental conditions
- Low loss, minimal local discharge, reduced noise, and strong heat dissipation capacity with 150% rated load operation capability
- High mechanical strength of cast coil with excellent sudden short-circuit withstand capability
- Safe, fire prevention, pollution-free design allowing direct installation in load centers
- Simple maintenance and installation with low comprehensive operating costs
Frequently Asked Questions
Q: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q: What is the lead time?
A: Mass production time is 15-25 days.
Q: How long is the warranty?
A: 24 months from B/L. If there are any accessory problems, just provide photos of the damaged accessory and we will provide free service. We provide easily damaged accessories for free according to product quantity and can offer technical support if needed.
Q: Is OEM/ODM available?
A: Yes! We are a manufacturer with our own R&D team and can customize products according to customer drawings or requirements. Customized services include: custom colors and special functions, custom packaging, customer logo printing, and other product ideas we can help design and produce. All customized services must be confirmed before production.
Q: How to control the product quality?
A: Our company owns core technology and all products hold CE certification. We have professional engineers and workers strictly follow technical drawings. Each process has technical instructors, with QC supervisors regularly inspecting production. We conduct performance tests during production and comprehensive quality tests upon completion.
