100kVA Transformer Mounting Pad 13.2kV Padmounted Transformers 3300ft
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
UL/CUL,ISO
Model Number
ZGD-100
Transformer Type:
Pad Mounted, Compartmental-Type II
Transformer Feed Type:
Loop Feed
Phase:
Single Phase
Capacity:
100 KVA
Vector Group:
II6
Primary Voltage:
13200GrdY/7620
Secondary Voltage:
240/120V (L-N-L)
Frequency:
60 Hz
Temperature Rise:
65°C
Insulation Rating:
Class E Insulation - 120°C, 248°F
Cooling Class:
KNAN; Self-Cooled
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material:
Copper
Ambient Temperature Rating:
40°C
Efficiency:
99%
Ambient Operating Temperature Range:
-40°C To +40°C (-50°F To +104°F)
Sound Level:
51 DBA
Elevation (Altitude):
3300ft (1000 Meters) Above Sea Level Or Below
Highlight:
100kVA transformer mounting pad
,transformer mounting pad 13.2kV
,padmounted transformers 3300ft
Product Description

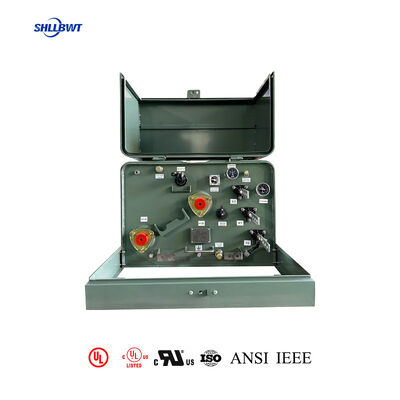

100 kVA Single Phase Pad Transformer | 13.2kV, Factory Pre-Wired, Fast Deployment, Minimal Maintenance
Product Overview
Leilang Electric 100 kVA single-phase pad-mounted transformer is a high-efficiency power distribution solution optimized for North American 13.2kV utility grids, engineered to deliver industry-leading deployment speed and operational simplicity. Designed to step down 13200GrdY/7620V primary voltage to standard 120/240V secondary power, this unit arrives 100% factory pre-wired and fully tested, eliminating on-site assembly and commissioning work.
Its integrated design enables ultra-fast deployment—simply place on a standard concrete pad and connect cables, cutting installation time by 80% compared to traditional transformers. Built with a fully sealed Compartmental-Type II structure and 100% copper windings, it requires minimal maintenance over its 25+ year service life. Fully certified to UL/cUL, ANSI/IEEE C57, CSA and DOE 2016 standards, it achieves 99.25% overall efficiency, making it ideal for medium-sized commercial facilities, apartment complexes and industrial auxiliary power systems.
Key Specifications
| Rated Capacity | 100 kVA |
|---|---|
| Primary Voltage | 13200GrdY/7620V (customizable to 34.5kV/12.47kV/13.8kV) |
| Secondary Voltage | 120/240V (L-N-L) |
| Frequency | 60 Hz |
| No-Load Loss | 280W |
| Load Loss | 1010W |
| Efficiency | 99.25% |
| Winding Material | 100% High-Purity Copper |
| Cooling Method | KNAN (Self-Cooled) |
| Insulation Class | Class E (120°C) |
| Structure | Compartmental-Type II, Dead-Front |
| Feed Type | Loop Feed (radial feed optional) |
| Tap Changer | 5-position hot-stick operable (±2*2.5%) |
| Protection | Bayonet fuses, surge arresters, pressure relief valve |
| Certification | UL/cUL, ANSI/IEEE C57, CSA, DOE 2016 |
| Ambient Temperature Range | -40°C to +40°C |
| Dimensions (H*D*W) | 910*1200*965 mm (35.8"*47.2"*38.0") |
| Oil Weight | 230 kg (507 lb) |
| Total Weight | 714 kg (1,574 lb) |
Core Features & Benefits
- 100% Factory Pre-Wired & Tested: All internal wiring, protection devices and controls are pre-installed and calibrated at the factory. Undergoes comprehensive performance testing including dielectric, load and temperature rise tests. Arrives ready for immediate cable connection with no on-site assembly required. Laser-engraved wiring diagrams and connection labels for error-free installation.
- Ultra-Fast Deployment: Plug-and-play design: Installs in as little as 4 hours by a 2-person crew. No need for specialized tools or heavy equipment beyond a standard forklift. Eliminates on-site transformer assembly, wiring and testing work. Reduces project timelines from weeks to days, accelerating power delivery to your site.
- Minimal Maintenance Design: Fully sealed oil compartment prevents dust and moisture ingress, eliminating internal cleaning. KNAN self-cooling system with no moving parts, no fan maintenance required. All service points (oil level gauge, drain valve, fuses) are easily accessible from ground level. Only requires annual visual inspections, with no routine internal maintenance for the first 10 years.
- Native 13.2kV North American Grid Compatibility: Standard 13.2kV primary voltage, directly compatible with most North American utility distribution networks. 5-position voltage tap changer compensates for line voltage fluctuations. Supports both loop and radial feed distribution systems. Dead-front primary connections ensure safe operation for utility workers.
- Industry-Leading Safety & Reliability: UL/cUL listed and fully compliant with ANSI/IEEE C57 standards. Multi-layer protection system including bayonet fuses, surge arresters and automatic pressure relief valve. Tamper-proof locking system prevents unauthorized access. Corrosion-resistant steel enclosure with domed top to prevent water retention.
Typical Applications
- Medium-sized apartment complexes and multi-family housing
- Small supermarkets, restaurants and retail stores
- Office buildings and professional centers
- Schools, churches and community facilities
- Industrial auxiliary power systems
- Street lighting and traffic signal networks
- Underground utility distribution projects
Frequently Asked Questions (FAQ)
Q1: What does "factory pre-wired" mean for this 100 kVA transformer?
A: Leilang Electric's 100 kVA transformer arrives with all internal wiring, protection devices (fuses, surge arresters) and controls fully installed and calibrated at our factory. It has passed comprehensive performance testing, so you only need to connect the incoming and outgoing cables on-site.
Q2: How quickly can this transformer be deployed?
A: With its plug-and-play design, a 2-person crew can install and commission this transformer in as little as 4 hours. Simply place it on a standard concrete pad, connect the cables, and it's ready for operation. No on-site assembly or testing is required.
Q3: What maintenance does this transformer require?
A: Its fully sealed, self-cooling design requires only annual visual inspections of the oil level, enclosure condition and security seals. No routine internal maintenance is needed for the first 10 years of operation, significantly reducing long-term maintenance costs.
Q4: Is this transformer compatible with 13.2kV utility grids?
A: Yes. It is specifically engineered for the 13200GrdY/7620V standard distribution system used across North America. It fully complies with all ANSI/IEEE C57 utility standards and can be directly connected to existing 13.2kV networks.
Q5: What certifications does this transformer have?
A: It is UL/cUL listed (certificate numbers UL-US-2564931-0, UL-CA-2548224-0) and fully compliant with ANSI/IEEE C57, CSA and DOE 2016 efficiency standards. All units undergo rigorous third-party testing to meet North American utility-grade requirements.
Q6: What is the lead time and warranty coverage?
A: Standard 100 kVA units ship within 15-25 business days. All Leilang Electric transformers come with a 24-month comprehensive warranty from the date of shipment, covering all manufacturing defects. We also provide free lifetime technical support.
