50 KVA Electric Transformer Pad 1 PH 13200Y 7620 Padmount 50dB
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
50 KVA electric transformer pad
,electric transformer pad 1 PH
,padmount 50dB

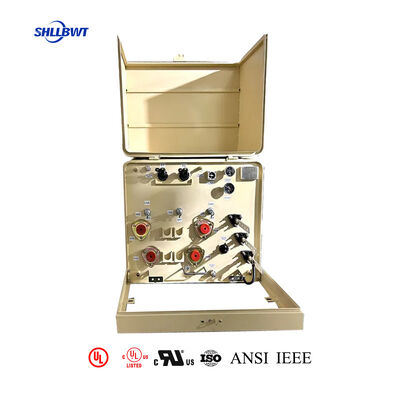

50 KVA Pad Mount Transformer 1 PH 13200Y/7620 Grounded Wye Primary 240/120V Secondary. For reliable, efficient power across critical applications, choose Leilang Electric's Oil-Immersed Pad Mounted Transformer (Capacity from 5KVA to 5MVA, voltage up to 35KV available). As a Shanghai-based original transformer factory founded in 2007 with rich R&D and production experience, we offer this fully customizable Single Phase Pad Mount Transformers and Three Phase Pad Mount Transformers designs, provide professional power solutions, and ensure it adheres to IEEE, ANSI standards, UL certification, and ISO quality systems. DOE-compliant and optimized for renewable energy, energy storage, scenic area power distribution, and commercial facilities, it delivers consistent performance with minimal maintenance.
The 50 KVA Single Phase Pad Mounted Transformer is an eco-friendly, high-performance power distribution solution engineered for 13200Y/7620V Grounded Wye Primary and 240/120V Secondary output, featuring biodegradable KNAN fluid and a 304 stainless steel casing—setting it apart from traditional mineral oil and mild steel models. Designed for medium-load single-phase applications, it delivers stable voltage transformation with exceptional durability and environmental compliance, adhering to ANSI, IEEE, NEMA, and DOE 2016 efficiency standards, as well as environmental regulations for biodegradable fluids (GB/T 20197 compliant).
The KNAN (Kinematic Natural Air) cooling system, paired with biodegradable dielectric fluid, ensures efficient heat dissipation (maintaining operating temperature below 85℃ to avoid performance degradation), while the 304 stainless steel casing (18% chromium, 8% nickel composition) offers superior corrosion resistance—ideal for coastal, humid, or harsh outdoor environments. Compact, weatherproof (NEMA 3R rated), and designed for direct concrete pad installation, it supports 24/7 continuous operation with minimal maintenance, boasting a 40+ year design service life.
The 13200Y/7620V Grounded Wye Primary is optimized for North American medium-voltage grids, while the 240/120V split-phase Secondary accommodates mixed residential/commercial loads. This transformer balances performance, sustainability, and compliance, making it a trusted choice for eco-conscious utility, commercial, and residential applications.
- Biodegradable KNAN Cooling & Insulation: Equipped with eco-friendly biodegradable dielectric fluid (compliant with GB/T 20197 and ASTM environmental standards), paired with KNAN natural cooling system—eliminating environmental harm if leaked, while ensuring efficient heat dissipation without external fans/pumps. The fluid also delivers excellent dielectric strength, preventing arcing and extending internal component life.
- 304 Stainless Steel Casing: Heavy-duty 304 stainless steel casing (chromium-nickel alloy) provides superior corrosion, rust, and chemical resistance compared to mild steel cabinets, ideal for coastal, industrial, or humid environments where traditional casings degrade over time. It requires no epoxy coating, supports recycling, and maintains structural integrity for decades.
- 13200Y/7620V Grounded Wye Primary: Standardized 4-wire multi-grounded neutral configuration for North American medium-voltage grids, offering enhanced fault protection, voltage stability, and compatibility with loop/radial feed setups—critical for reliable single-phase power delivery to medium loads.
- High Compliance & Efficiency: Meets ANSI/IEEE C57.12.00, NEMA TP-1, and DOE 2016 efficiency standards (99.1% full-load efficiency), with UL/CSA certification for North American markets. It also complies with GB/T 14285-2006 for protection performance and GB1094.1 for voltage tolerance.
- Versatile & Low-Maintenance: 240/120V split-phase Secondary supports 120V household appliances and 240V heavy-duty equipment; sealed design prevents fluid contamination, requiring only annual fluid sampling and visual inspections. The compact footprint integrates seamlessly with outdoor installations, no protective fencing needed.
| Parameter | Specification |
|---|---|
| Rated Capacity | 50 KVA |
| Phase Configuration | Single Phase |
| Primary Voltage | 13200Y/7620V, Grounded Wye |
| Secondary Voltage | 240/120V, Split-Phase |
| Cooling System | KNAN (Kinematic Natural Air) with Biodegradable Fluid |
| Casing Material | 304 Stainless Steel (18% Cr, 8% Ni) |
| Efficiency (Full Load) | 99.1% (DOE 2016 Compliant) |
| Operating Temperature Range | -40℃ to +60℃ |
| Enclosure Rating | NEMA 3R (Weatherproof) |
| Compliance | ANSI, IEEE, NEMA, DOE 2016, UL/CSA, GB/T 20197, GB/T 14285-2006 |
NOTE: Product parameters and images are for general reference only and may not reflect all details of your custom configuration, due to custom builds and minor variations between standard models.
Precise specifications for your order are detailed in the specification table and supporting technical documents (CAD files, dimensional drawings, wiring diagrams, etc.). Specific details may differ from images.
Please review all specifications and technical documents before ordering; do not rely solely on product images.
We offer custom-built units with lead times nearly as fast as prebuilt models—contact us for your specific requirements.
- Coastal Residential & Commercial Areas: Ideal for coastal communities, marinas, and coastal businesses—304 stainless steel casing resists saltwater corrosion, while biodegradable fluid protects marine and coastal ecosystems from leaks.
- Medium-Sized Commercial Buildings: Powers retail centers, office buildings, and restaurants, delivering stable 240/120V power for HVAC systems, commercial equipment, and daily operations with low energy loss.
- Eco-Conscious Utility Upgrades: Perfect for utility grids prioritizing sustainability, replacing traditional mineral oil transformers to meet green energy standards and environmental regulations (GB/T 20197).
- Industrial & Humid Environments: Supports small industrial facilities, warehouses, and manufacturing plants in humid or chemical-exposed areas—304 stainless steel casing prevents corrosion, ensuring long-term reliability.
- Public & Municipal Projects: Powers schools, parks, and community centers, aligning with green infrastructure initiatives, while the low-maintenance design reduces operational costs for municipal budgets.
