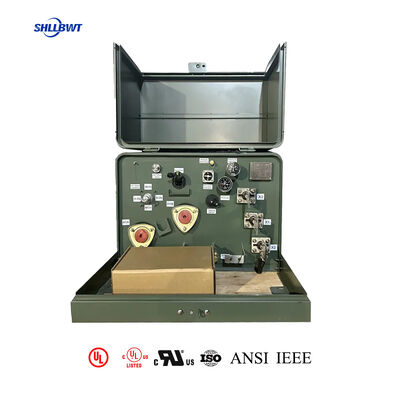

125 KVA 12470V Medium Voltage Transformers ANSI IEEE Single Phase Pad Transformer
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
UL/CUL,ISO
Model Number
ZGD-125
Transformer Type:
Pad Mounted, Compartmental-Type II
Transformer Feed Type:
Loop Feed
Phase:
Single Phase(Connects To 3-Phase Electrical Grid)
Capacity:
125 KVA
Vector Group:
II6
Primary Voltage:
12470GrdY/7200
Secondary Voltage:
240/120V (L-N-L)
Frequency:
60 Hz
Temperature Rise:
65°C
Insulation Rating:
Class E Insulation - 120°C, 248°F
Cooling Class:
KNAN; Self-Cooled
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material:
Copper
Ambient Temperature Rating:
40°C
Efficiency:
99.2%
Ambient Operating Temperature Range:
-40°C To +40°C (-50°F To +104°F)
Sound Level:
55 DBA
K-Factor Rating (Harmonic Mitigation):
K-1 (Standard)
Highlight:
12470V Medium Voltage Transformers
,Medium Voltage Transformers ANSI
,IEEE Single Phase Pad Transformer
Product Description
125 kVA 12470V Single Phase Pad Transformer | ANSI/IEEE Certified, Fully Sealed
Product Overview
Leilang Electric 125 kVA single-phase pad-mounted transformer is a heavy-duty utility distribution solution engineered for 12470V grids, built to strict ANSI/IEEE C57 standards and featuring a fully sealed structure for maximum reliability and minimal maintenance. This unit safely steps down 12470GrdY/7200V primary voltage to standard 120/240V secondary power, with full compliance to North American utility codes, DOE 2016 efficiency, and CSA requirements. Its fully sealed oil compartment prevents dust, moisture, and contamination, ensuring stable performance in harsh outdoor environments. With UL/cUL certification, copper windings, and a compartmental-type II dead-front design, it delivers long service life, strong safety, and consistent power for residential, commercial, and industrial applications.
Key Specifications
| Parameter | Value |
|---|---|
| Rated Capacity | 125 kVA |
| Primary Voltage | 12470GrdY/7200V |
| Secondary Voltage | 120/240V (L-N-L) |
| Frequency | 60 Hz |
| Structure | Pad Mounted, Compartmental-Type II |
| Sealing | Fully sealed oil system |
| Cooling | KNAN / ONAN Self-Cooled |
| Temperature Rise | 65°C |
| Insulation Class | E (120°C) |
| Winding Material | Copper |
| Efficiency | 99.10% |
| Sound Level | 55 dBA |
| Feed Type | Loop Feed |
| Certifications | UL/cUL, ANSI/IEEE C57, CSA, DOE 2016 |
| Operating Temp | -40°C to +40°C |
| Altitude | Up to 1000 m (3300 ft) |
| UL Certificate | UL-US-2564931-0 |
| cUL Certificate | UL-CA-2548224-0 |
Core Features & Benefits
- ANSI/IEEE Certified (Utility-Grade Standard)
- Fully complies with ANSI/IEEE C57.12.00, C57.12.28, C57.12.29
- UL/cUL listed for USA & Canada utility installation
- Meets DOE 2016 efficiency and CSA standards
- Factory tested to North American grid requirements
- Fully Sealed Maintenance-Free Design
- 100% fully sealed oil compartment
- No oil leaks, no moisture ingress, no dust contamination
- Extends insulation and core lifespan
- Reduces inspection and maintenance cost
- Ideal for remote, unattended locations
- 12470V Grid Compatibility
- Optimized for North American 12.47kV distribution systems
- 5-position hot-stick tap changer for voltage regulation
- Supports loop feed and radial feed networks
- Stable output under fluctuating load
- Dead-Front Safety & Durability
- Compartmental-Type II dead-front construction
- No exposed live parts for public safety
- Corrosion-resistant coated steel tank
- Stainless steel hardware & hinges
- Tamper-proof security locking system
- High Efficiency & Reliability
- 99.10% high efficiency, low energy loss
- Copper windings for better conductivity and longevity
- Self-cooled – no fans, no failures
- Pressure relief valve, bayonet fuse, surge protection
Typical Applications
- Residential communities & apartment complexes
- Commercial plazas, retail, and small industry
- Schools, hospitals, and public facilities
- Rural electrification and remote power supply
- 12.47kV underground distribution networks
- Utility, municipal, and engineering projects
Frequently Asked Questions
Is this 125 kVA transformer ANSI/IEEE certified?
Yes. It is fully ANSI/IEEE C57 certified and UL/cUL listed, complying with all North American utility standards.
What does "fully sealed" mean for this transformer?
The oil compartment and internal components are completely sealed to prevent moisture, dust, and contamination. It greatly reduces maintenance and extends service life.
What voltage does it convert?
It steps 12470GrdY/7200V down to standard 120/240V for residential and commercial use.
Is it suitable for outdoor and harsh environments?
Yes. Its fully sealed, weatherproof, corrosion-resistant design works reliably outdoors in temperatures from -40°C to +40°C.
Does it require frequent maintenance?
No. The fully sealed structure minimizes maintenance; only annual visual inspections are needed.
What is the lead time and warranty?
Standard lead time is 15–25 business days. All Leilang Electric transformers include a 24-month warranty and professional technical support.
