50 KVA Single Phase Pad Mounted Transformer 11.5Kv to 120v Oil Filled for Residential Distribution
Products
Contact Us
|
50 KVA Single Phase Pad Mounted Transformer 11.5Kv to 120v Oil Filled for Residential Distribution
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
UL,CUL,ISO
Model Number
ZGD-50/11.5
Product Description

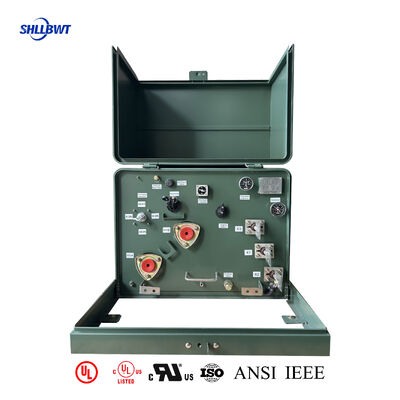

50kVA Single Phase Pad Mounted Transformer 11.5kV to 120V Oil Filled Residential Distribution Transformer
Product Overview
Leilang Electric's liquid-filled pad-mounted transformers are dielectric fluid-immersed distribution transformers with a voltage rating of up to 34.5 kV. Engineered specifically to cater to underground power distribution requirements, these transformers serve a broad spectrum of industry applications, spanning data centers, hospitals, various commercial buildings, private utilities, industrial plants and beyond.
All our solutions are UL/cUL listed and have been designed and tested in compliance with relevant industry standards such as ANSI, IEEE, CSA and DOE. What's more, we offer 30-day fast delivery for these products.
Main Technical Data
| Transformer Type | Pad Mounted, Compartmental-Type II |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Capacity | 50 KVA |
| Vector Group | II6 |
| Primary Voltage | 11500V |
| Secondary Voltage | 120/240V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards, Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 48 dBA |
| Tank Material | 304 Stainless Steel |
Single Phase Pad Mounted Transformer Specifications
| Rating (kVA) | High Voltage (kV) | No Load Loss | On Load Loss | Height (mm) | Depth (mm) | Width (mm) | Oil Weight (kg) | Total Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
Compliance Standards
- Meets/Exceeds DOE 2016 Efficiency Ratings
- Meets/Exceeds CSA Efficiency Ratings
- Complies with ANSI / IEEE C57.12.00
- Complies with ANSI / IEEE C57.12.21
- Complies with ANSI / IEEE C57.12.25
- Complies with ANSI / IEEE C57 12.28
- Complies with ANSI / IEEE C57 12.29
- Complies with ANSI / IEEE C57 12.35
- Complies with ANSI / IEEE C57.12.38
- Complies with ANSI / IEEE C57.12.70
- Complies with ANSI / IEEE C57.12.110
- Complies with ANSI / IEEE C57.12.131
- Complies with ANSI / IEEE C62.11
- Complies with ANSI / IEEE C62.22
- Complies with ANSI / IEEE 386
- Complies with ANSI / IEEE C2
- Complies with ANSI / IEEE C37.47
- Complies with ANSI Z535.4
- Complies with ASTM D3487
- Complies with ASTM D6871
- Complies with NEMA 260-1996
- Complies with 10 CFR Part 431
- Complies with CSA C2.1-06
- Complies with CSA C50
- Complies with CSA C88
- Complies with CSA C88.1
- Complies with CSA C88-16
- Complies with CSA C227.3
- Complies with CSA C802.1
- Complies with CSA C802.2
- Complies with CSA C802.3
Product Benefits
Single-phase pad-mounted transformers are key to enhancing power delivery efficiency in today's electrical systems. Their small footprint and strong safety attributes make them ideal for residential applications, blending neatly into cityscapes without compromising on appearance.
Leilang Electric offers customization to meet specific project needs, ensuring these transformers deliver top-tier performance across varied settings.
Production Process
Why Choose Leilang Electric
- Leilang Electric single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
- The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards.
- The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.
