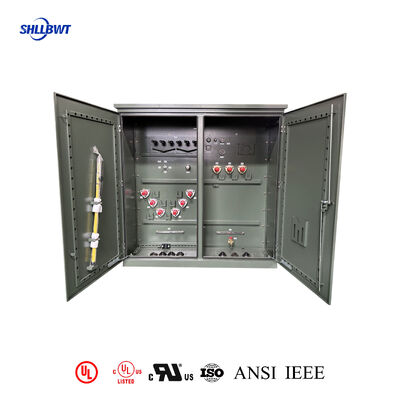

2000kVA Three Phase Pad Mount Transformer 12470V Oil Filled Ground Mounted
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
CE,ISO
Model Number
ZGS-2000/12.47
Highlight:
2000kVA Three Phase Pad Mount Transformer
,Three Phase Pad Mount Transformer 12470V
,12470V Oil Filled ground mounted transformer
Product Description
2000 kVA Pad Mount Three-Phase Oil-Immersed Distribution Transformer
Product Overview
The ZGS-H-2000/12.47 is a high-efficiency, oil-filled transformer designed for reliable power distribution. With low energy loss and robust construction, it ensures stable performance in indoor/outdoor environments. UL/cUL-certified, it's ideal for industrial and utility applications, offering durability and low maintenance.
Key Specifications
| Particulars | Unit | Specification |
|---|---|---|
| Type | ~ | Pad mounted, oil filled |
| Rated capacity | kVA | 2000 |
| No. of Phase | ~ | 3 phases |
| Primary voltage | V | 12470GrdY/7200 |
| Secondary voltage | V | 480Y/277 |
| Cooling method | ~ | ONAN |
| Rated frequency | Hz | 60 |
| Vector group | ~ | Yyn0 |
| Insulation class | ~ | E |
| Temperature rise | ℃ | 65 |
| Off-load loss | W | 2050 |
| On-load loss (85℃) | W | 19030 |
| Impedance | % | 5.75 |
| Winding material | ~ | Copper |
| Core material | ~ | Silicon steel |
| Dimension | mm | 2500×2200×1900 |
| Service condition | ~ | Indoor or outdoor |
| Sea level | M | ≤1000 |
| Standard | ~ | ANSI C57.12.00 |
Why Choose Leilang Electric
- Full range of three phase pad mounted transformers with capacity of 45kVA-5500kVA and voltage up to 34.5kV
- Products meet or exceed standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA
- UL/cUL certified (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0)
- Export experience to North America, South America, Philippines and other regions
- Rich design and production experience with professional after-sales service
- Fast delivery within 7-35 days
Product Range Specifications
| Rated Power (kVA) | High Voltage (kV) | Low Voltage (V) | No-load Loss (W) | On-load Loss (W) | Height (mm) | Depth (mm) | Width (mm) | Weight (kg) | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 75KVA | 34.5KV, 4.160KV, 12.47KV, 13.2KV, 13.8KV, 24940GrdY/14400, 1247Grdy/7200, 4160GrdY/2400 or others | 277V, 347V, 480V, 600V, 120/240V, 208GrdY/120, 415GrdY/240, 480GrdY/277, 600Y/347 | 180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | Same as above | Same as above | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 |
| 300KVA | Same as above | Same as above | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 |
| 500KVA | Same as above | Same as above | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 |
| 750KVA | Same as above | Same as above | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 |
| 1000KVA | Same as above | Same as above | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 |
| 1500KVA | Same as above | Same as above | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 |
| 2000KVA | Same as above | Same as above | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 |
| 2500KVA | Same as above | Same as above | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 |
| 3000KVA | Same as above | Same as above | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 |
| 3735KVA | Same as above | Same as above | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Production Process
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality.
What is the lead time?
Mass production time 15-25 days.
How long is the warranty?
24 months from B/L. If there are any accessory problems, just provide photos of damaged accessory, then we will provide free service. According to product quantity, we provide easily damaged accessories for free. We also provide technical support if needed.
Is OEM/ODM available?
Yes! We are a manufacturer with our own R&D team and can customize products according to customer's drawings or requirements. Customized services include: custom colors and functions, custom packaging, customer logo printing, and other product ideas we can help design and produce. All customization must be confirmed before production.
How to control product quality?
Our company owns core technology and all products hold CE certification. We have professional engineers and workers strictly follow drawings. Each process has technical instructors. QC supervisors regularly inspect production. We conduct performance tests during production and comprehensive quality tests upon completion.
