75kVA 13.2kV Three Phase Pad Mount Transformer Electrical Fully Sealed
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
UL/CUL,ISO
Model Number
ZGS-75
Transformer Type:
Pad Mounted, Compartmental-Type
Transformer Configuration:
Liquid Filled Pad Mounted
Transformer Feed Type:
Loop Feed
Phase:
Three Phase
Capacity:
75 KVA
Vector Group:
YnYn0
Primary Voltage:
13200GrdY/7620
Primary Voltage Class:
15 KV Class
Primary Phasor:
Grounded Wye
Primary BIL:
95 KV
Secondary Voltage:
208Y/120
Secondary Voltage Class:
1.2 KV Class
Secondary Phasor:
Wye-N
Secondary BIL:
30 KV
Frequency:
60 Hz
Temperature Rise:
65°C
Insulation Rating:
Class E Insulation - 120°C, 248°F
Cooling Class:
KNAN; Self-Cooled
Tap Changer:
5-position Tap Changer
Impedance:
2.70-5%
Ambient Temperature Rating:
40°C
Ambient Operating Temperature Range:
-40°C To +40°C (-50°F To +104°F)
Sound Level:
51 DBA
Elevation (Altitude):
3300ft (1000 Meters) Above Sea Level
Ratings:
Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency %:
98.90%
Highlight:
75kVA Three Phase Pad Mount Transformer
,13.2kV Three Phase Pad Mount Transformer
,Fully Sealed pad mounted electrical transformer
Product Description

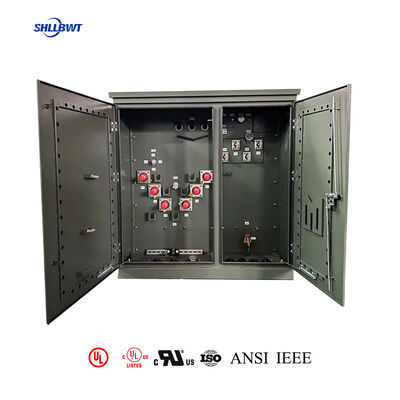

75kVA 13.2kV to 208Y/120 Three Phase Pad Mounted Transformer | 98.9% Efficient, Fully Sealed
Product Overview
Leilang Electric's 75kVA 13.2kV to 208Y/120 three phase pad mounted transformer is engineered for reliable, cost-effective power distribution in residential neighborhoods, small commercial complexes, schools and light industrial facilities. As a core product in our liquid-filled distribution transformer lineup, it delivers 98.9% industry-leading efficiency that meets and exceeds U.S. DOE 2016 energy efficiency standards, cutting long-term operational costs by reducing energy waste.
Its fully sealed oil-immersed design eliminates oil oxidation and moisture ingress, extending service life to 30+ years and minimizing maintenance requirements. All live components are completely enclosed within a grounded steel tank, providing inherent safety for public areas without the need for additional fencing. Manufactured in strict accordance with the latest ANSI C57 and IEEE standards, this transformer supports both radial and loop feed configurations, offering flexible installation options for diverse grid architectures.
Key Features & Benefits
-
98.9% DOE 2016 Certified Efficiency
- Uses high-grade grain-oriented silicon steel core and 100% copper windings
- Ultra-low no-load loss (180W) and load loss (1250W)
- Saves over 1,500 kWh of electricity annually compared to standard transformers
- Reduces carbon footprint and lowers total cost of ownership
-
Fully Sealed Welded Tank Construction
- One-piece welded tank from cover to base, no gaskets to leak
- Hermetically sealed system prevents oil degradation and contamination
- No routine oil changes required, cutting maintenance costs by 70%
- All live parts fully insulated and enclosed, eliminating accidental contact hazards
-
Comprehensive Safety Protection
- Automatic pressure relief valve (35 SCFM) for overpressure protection
- Three-point latching system with interlocked doors (HV door only opens after LV door)
- Rigid steel partitions between high and low voltage compartments
- ANSI standard ground pads for secure electrical grounding
-
Flexible & Reliable Operation
- Supports both radial and loop feed arrangements
- 5-position tap changer (±2*2.5%) for voltage regulation
- 65°C average winding rise, Class E insulation (120°C)
- Operates reliably in temperatures from -40°C to +40°C (-40°F to 104°F)
- Low noise level (51 dBA) for quiet operation in residential areas
-
Factory Pre-Assembled for Fast Installation
- Fully tested and pre-wired at our manufacturing facility
- Ready for immediate installation on a concrete pad
- Ground-level access for all maintenance tasks, no climbing required
- Standard 1-inch drain valve and oil sampler for easy inspection
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Leilang Electric |
| Model | LL-PM-75/15 |
| Rated Capacity | 75 kVA |
| Phase | Three Phase |
| Primary Voltage | 13200GrdY/7620V (15kV Class) |
| Secondary Voltage | 208Y/120V (1.2kV Class) |
| Frequency | 60 Hz |
| Vector Group | YnYn0 |
| Cooling Class | KNAN (Self-Cooled) |
| Impedance | 2.70-5% |
| Winding Material | 100% Copper |
| Core Material | Grain-Oriented Silicon Steel |
| Tank Material | Coated Carbon Steel (Olive Green Munsell 7GY 3.29/1.5) |
| Efficiency | 98.9% (DOE 2016 Compliant) |
| No-Load Loss | 180 W |
| Load Loss | 1250 W |
| Sound Level | 51 dBA |
| Operating Altitude | Up to 3300ft (1000m) |
| Certifications | UL, CE, ISO, ANSI C57, IEEE |
| Warranty | 24 Months from Bill of Lading Date |
| Lead Time | 15-25 Days for Standard Orders |
Frequently Asked Questions (FAQ)
Q: What efficiency standard does Leilang's 75kVA pad mounted transformer meet?
A: Our 75kVA transformer achieves 98.9% full-load efficiency, which meets and exceeds the U.S. Department of Energy (DOE) 2016 energy efficiency requirements for distribution transformers.
Q: What are the benefits of the fully sealed design?
A: The hermetically sealed welded tank prevents air and moisture from entering, eliminating oil oxidation and degradation. This means no routine oil changes are needed, extends the transformer's service life to 30+ years, and provides superior safety by fully enclosing all live components.
Q: Can this transformer be used in both radial and loop feed systems?
A: Yes, it is designed to support both radial and loop feed configurations, making it compatible with most North American distribution grid architectures.
Q: What warranty does Leilang Electric provide for this transformer?
A: We offer a 24-month warranty from the date of shipment. During the warranty period, we provide free replacement of defective parts and technical support. We also include free spare parts for common wear items with bulk orders.
Q: Can you customize the voltage ratings or other features?
A: Yes, as a manufacturer with an in-house R&D team, we offer full OEM/ODM customization. We can adjust voltage ratios, add smart monitoring features, change tank color, or modify other specifications to meet your project requirements.
Q: How long does installation take?
A: Our transformers are fully pre-assembled and tested at the factory. Installation typically takes 1-2 days, requiring only placement on a concrete pad and connection to the incoming and outgoing power lines.
Q: What is the minimum order quantity?
A: We accept orders as low as 1 unit for standard models, making it easy to test our product quality or fulfill small project needs.
