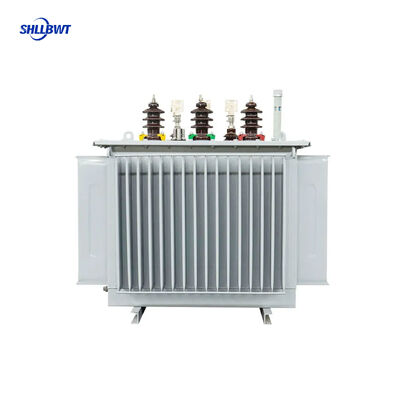

50Hz Oil Immersed Distribution Transformer 15kv 10 Kv Power Pole Transformer
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Standard Packaging: | Plywood case |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | 1000set/month |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
CE,ISO
Model Number
S-11-M
Phase:
Three,Single,Single Or Three Phase
Coil Structure:
Toroidal,YNyn0d11,Other
Frequency:
50/60Hz,50Hz Or 60Hz
Rated Capacity:
30-3000kva,315,63,3000,250
Type:
Oil Immersed,
Material:
Copper,Alumnium Or Copper,Copper+alumnium
Input Voltage:
Customized Product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV
Output Voltage:
15kv 10 Kv 0.4/0.69kv,0.415kv,13.8kv,0.4/0.23kV,200v/220/240/380v/400v/415v/440v
Vector Group:
Dyn11,Dyn5,Yyno Or Others,Dyn11/Yzn11,Dyn11 / Yyn0
Cooling Method:
Oil Natural,ONAN,Oil Cooling
Highlight:
50hz oil immersed distribution transformer
,15kv oil immersed distribution transformer
Product Description
Oil Immersed Distribution Transformer
The S-11-M series three-phase fully sealed oil-immersed power transformer is a new generation of energy-saving distribution equipment that complies with GB1094 and IEC60076 international and national standards.
Product Overview
Designed specifically for 10kV-class distribution systems, it efficiently converts high-voltage to low-voltage power, and is widely used in various distribution scenarios such as urban and rural power grid renovation, industrial and mining enterprises, residential communities, commercial complexes, airports, and stations. It is the preferred upgrade replacement for traditional oil-immersed transformers.
Compared with ordinary oil-immersed transformers, this series eliminates the oil conservator and adopts a corrugated tank elastic compensation structure, which can automatically adjust the expansion and contraction of oil volume caused by temperature changes. This completely isolates the transformer body from the air, fundamentally preventing oil deterioration and insulation aging, greatly improving operational reliability, and realizing maintenance-free operation under normal conditions.
Core Structure and Process Advantages
High-Efficiency Energy-Saving Iron Core System
Made of high-quality cold-rolled grain-oriented silicon steel sheets with a multi-stage step-lapped full-oblique joint lamination process, it significantly reduces magnetic resistance, effectively lowering no-load loss and no-load current. Compared with traditional S9 series products, the no-load loss is reduced by an average of more than 10%, delivering outstanding energy-saving performance.
High-Reliability Winding Design
- The high-voltage winding adopts a multi-layer cylindrical structure, wound with high-quality oxygen-free copper wire. The interlayer insulation uses high-strength insulating paper, treated with a vacuum impregnation process, ensuring excellent insulation performance and strong short-circuit resistance.
- The low-voltage winding adopts a foil-wound structure, with tight winding and high concentricity, excellent heat dissipation performance, effectively reducing load loss and improving transformer operating efficiency.
Fully Sealed Corrugated Tank Structure
- The tank is welded with corrugated steel plates, with full, flat, and uniform welds, eliminating the risk of oil leakage.
- The corrugated plates have high elasticity, automatically compensating for the thermal expansion and contraction of oil volume. No oil conservator is required, completely isolating the transformer oil from external air, thoroughly preventing the intrusion of moisture and impurities, delaying insulation aging, and extending equipment service life.
- The tank surface is treated with anti-corrosion spraying, with strong weather resistance, adapting to extreme environments from -40℃ to +40℃, ensuring no rust or corrosion during long-term outdoor operation.
Complete Cooling and Protection System
- The cooling method is oil-immersed natural cooling (ONAN), with the corrugated tank featuring an efficient heat dissipation structure, large heat dissipation area, and high heat dissipation efficiency, ensuring long-term stable operation of the transformer at rated load.
- Equipped with a high-reliability off-circuit tap changer, with a tap range of ±5% or +2×2.5%, which can be flexibly adjusted according to on-site voltage requirements.
- Comes standard with high-reliability bushings, pressure relief valves, thermometers, and other accessories, comprehensively ensuring the safe operation of the transformer. Intelligent temperature control, online monitoring, and other systems can be customized as needed.
Core Technical Specifications
| Model | Rated Capacity (kVA) |
Connection Symbol | Hight Voltage (v) |
Tap range | Low Voltage (v) |
No-load Loss | On-load Loss | No-load current | Short-circuit impedance |
| (W) | (W) | (%) | (%) | ||||||
| S11-50/35 | 50 | Yyn0 or Dyn11 |
35 | ±5% +2×2.5% |
0.4 | 160 | 1200 | 1.3 | 6.5 |
| S11-100/35 | 100 | 230 | 2010 | 1.1 | |||||
| S11-125/35 | 125 | 270 | 2370 | 1.1 | |||||
| S11-200/35 | 200 | 340 | 3320 | 1 | |||||
| S11-250/35 | 250 | 400 | 3960 | 0.95 | |||||
| S11-500/35 | 500 | 680 | 6910 | 0.85 | |||||
| S11-630/35 | 630 | 830 | 7860 | 0.65 | |||||
| S11-1000/35 | 1000 | 1150 | 11500 | 0.65 | |||||
| S11-1250/35 | 1250 | 1400 | 13900 | 0.6 | |||||
| S11-2000/35 | 2000 | 1990 | 19700 | 0.55 | |||||
| S11-2500/35 | 2500 | 2360 |
Note: The default connection symbol is Dyn11/Yyn0, which can be customized according to user requirements. Parameters such as voltage class, capacity, and short-circuit impedance support personalized customization.
Core Performance Highlights
- Ultimate Energy Saving, Cost Reduction & Efficiency Improvement: No-load loss is significantly reduced compared with traditional products, complying with national first-class energy efficiency standards. Long-term operation can significantly reduce electricity costs, helping enterprises achieve energy conservation and carbon reduction goals.
- Fully Sealed Design, Maintenance-Free Operation: Eliminates the oil conservator, and the corrugated tank isolates air, preventing oil deterioration and insulation aging. No regular oil change or oil replenishment is required, achieving maintenance-free operation under normal conditions and greatly reducing operation and maintenance costs.
- Safe, Reliable and Durable: High mechanical strength, strong resistance to short circuit and lightning impulse. The fully sealed structure eliminates the risk of oil leakage, with excellent fire performance, adapting to various harsh operating environments.
- Low Noise, Environmentally Friendly, Wide Adaptability: Low operating noise, no oil pollution and no harmful gas emission, suitable for installation in residential areas, commercial areas and other scenarios with high environmental requirements. Can be used both outdoors and indoors, adapting to various working conditions with altitude ≤1000m.
- Compact Structure, Easy Installation: Small size, light weight, no need for complex infrastructure, easy installation. Can be directly installed at the load center, reducing transmission and distribution losses.
- Customized Service, Flexible Adaptation: Supports full-dimensional customization of capacity, voltage, tap range, protection level, accessory configuration, etc., accurately matching the personalized needs of different projects.
Wide Application Scenarios
- Power System: Urban and rural power grid renovation, substations, distribution rooms, as core distribution equipment to ensure stable grid operation
- Industrial Fields: Industrial and mining enterprises, metallurgy, chemical industry, petrochemical industry, power plants, meeting the high-load and high-reliability power supply requirements of industrial production
- Urban Infrastructure: Residential communities, commercial complexes, airports, stations, subways, docks, adapting to safe and low-noise power supply in densely populated areas
- Agricultural Fields: Rural power grids, agricultural irrigation, breeding bases, adapting to complex outdoor environments, ensuring long-term stable operation without maintenance
Quality Assurance and Service
This series of S-11-M oil-immersed transformers is produced in strict accordance with the ISO9001 quality management system. All products have passed the full type test of the National Transformer Quality Supervision and Inspection Center. All core components are supplied by high-quality brand suppliers, and 100% pass inspection before delivery.
We provide one-stop services from selection design, manufacturing, installation and commissioning to after-sales operation and maintenance, supporting customized specifications to ensure that products accurately match project requirements. After-sales service provides lifelong technical support, spare parts supply and quick-response maintenance services, ensuring stable operation of equipment throughout the entire life cycle.
Frequently Asked Questions
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: What is the lead time?
A: Mass production time 15-25 days.
Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
