1600KVA Oil Immersed Distribution Transformer 200KV 38.5KV Distribution Transformer Oil
| MOQ: | 1unit |
| Price: | $500~$60000/Unit |
| Standard Packaging: | 1000set/month |
| Delivery Period: | 15~30days |
| Payment Method: | T/T |
| Supply Capacity: | Plywood case |
Detail Information
Place of Origin
CHINA
Brand Name
Leilang Electric
Certification
CE,ISO
Model Number
S11-1600kVA
Type:
Oil Type
Usage:
Airport
Switch:
On-Load-Tap
Withstand:
200KV BIL
Phase:
Three Phase
System Voltage:
38.5KV
Frequency:
50Hz Or 60Hz
Core:
Grain-oriented Silicon Steel
Highlight:
1600kva oil immersed distribution transformer
,oil immersed distribution transformer 200kv
Product Description

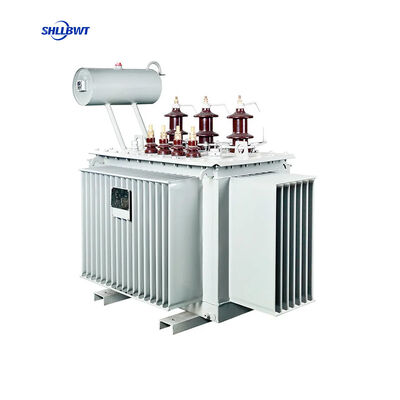

1600KVA Oil-Immersed Transformer 38.5KV On-Load Tap Changer, 200KV BIL, S11 Ultra-Low Loss
Product Overview
Leilang Electric, an ISO 9001 and ISO 14001 certified manufacturer specializing in mission-critical power distribution solutions for aviation infrastructure, presents our S11-1600KVA 3-phase airport-grade oil-immersed transformer. Engineered to meet the stringent reliability requirements of airport operations, this transformer features a 38.5KV system voltage, integrated on-load tap changer, and 200KV basic impulse level (BIL) for enhanced electrical protection.
Core Verified Advantages
- Airport-Specific Design: Built to deliver uninterrupted power for airport terminals, runways, and navigation systems, with enhanced reliability features to support 24/7 critical operations.
- On-Load Tap Changer (OLTC): Enables voltage regulation without power interruption, ensuring stable voltage output even under fluctuating load conditions—essential for sensitive aviation equipment.
- 200KV High BIL Rating: Provides superior protection against lightning strikes and transient overvoltages, safeguarding airport power systems from costly downtime.
- S11 Ultra-Low Loss Technology: Delivers 30% lower no-load loss and 70-85% lower no-load current compared to traditional S9 series transformers, significantly reducing long-term energy costs.
Advanced Construction
This transformer features a fully sealed tank structure with improved sealing technology, preventing transformer oil from contacting air and extending service life. It uses high-quality grain-oriented silicon steel cores for maximum efficiency and is available in both oil-immersed and dry-type configurations to meet different airport installation requirements.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | S11-1600KVA |
| Rated Capacity | 1600 kVA |
| Phase | 3 Phase |
| System Voltage | 38.5 KV |
| Basic Impulse Level (BIL) | 200 KV |
| Tap Changer Type | On-Load Tap Changer |
| Frequency | 50Hz / 60Hz |
| Core Material | Grain-Oriented Silicon Steel |
| Tank Structure | Fully Sealed (Bolted/Welded) |
| Cooling Method | ONAN (Natural Air/Oil Cooling) |
| Insulation Class | Class A |
| Temperature Rise | 65°C |
| Ambient Temperature | -25°C to +40°C |
| Standards Compliance | IEC 60076, CE, ISO 9001, ISO 14001 |
| Dimensions (L×W×H) | 2200mm × 1400mm × 2100mm |
| Total Weight | ~5800 kg |
| Model | Rated Capacity (kVA) |
Connection Symbol | Hight Voltage (v) |
Tap range | Low Voltage (v) |
No-load Loss | On-load Loss | No-load current | Short-circuit impedance |
| (W) | (W) | (%) | (%) | ||||||
| S11-50/35 | 50 | Yyn0 or Dyn11 |
35 | ±5% +2×2.5% |
0.4 | 160 | 1200 | 1.3 | 6.5 |
| S11-100/35 | 100 | 230 | 2010 | 1.1 | |||||
| S11-125/35 | 125 | 270 | 2370 | 1.1 | |||||
| S11-200/35 | 200 | 340 | 3320 | 1 | |||||
| S11-250/35 | 250 | 400 | 3960 | 0.95 | |||||
| S11-500/35 | 500 | 680 | 6910 | 0.85 | |||||
| S11-630/35 | 630 | 830 | 7860 | 0.65 | |||||
| S11-1000/35 | 1000 | 1150 | 11500 | 0.65 | |||||
| S11-1250/35 | 1250 | 1400 | 13900 | 0.6 | |||||
| S11-2000/35 | 2000 | 1990 | 19700 | 0.55 | |||||
| S11-2500/35 | 2500 | 2360 | 23200 | 0.55 |
Core Engineering Advantages
- Uninterrupted Power for Critical Operations: The on-load tap changer allows voltage adjustments while the transformer remains energized, eliminating downtime during load fluctuations—critical for airport navigation systems and emergency lighting.
- Superior Electrical Protection: The 200KV BIL rating provides industry-leading protection against lightning strikes and transient surges, reducing the risk of equipment damage and power outages.
- Exceptional Energy Efficiency: S11 series technology reduces core losses by 30% and excitation current by up to 85% compared to older models, delivering substantial energy savings over the transformer's 30+ year service life.
- Extended Service Life: The fully sealed tank design prevents moisture and oxygen ingress, eliminating oil degradation and reducing maintenance requirements. Improved sealing technology ensures long-term reliability in harsh environmental conditions.
- Environmentally Friendly Design: Manufactured in compliance with ISO 14001 environmental standards, with low noise operation (<65 dBA) and minimal environmental impact.
- Flexible Configuration: Available in both oil-immersed and dry-type versions, with customizable voltage ratings, tap ranges, and enclosure options to meet specific airport project requirements.
Quality Assurance & Support
All Leilang Electric airport transformers undergo a rigorous 15-step quality control process certified to ISO 9001 standards:
- Raw material inspection and material certification verification
- Core loss and excitation current measurement
- Winding resistance and insulation resistance testing
- Short-circuit impedance and voltage ratio testing
- High-voltage withstand and BIL testing
- On-load tap changer operation testing
- Final comprehensive performance verification and oil quality analysis
We support sample orders for quality verification and offer full OEM/ODM customization services, including custom voltage ratings, tap ranges, enclosure colors, and branding. With a monthly production capacity of 1,000 units and a standard lead time of 15-25 days, we can meet both small-scale and large airport project requirements. All products come with a 24-month warranty from the bill of lading date and lifetime technical support from our team of certified electrical engineers with specialized aviation industry experience.
Frequently Asked Questions (FAQ)
Q: Why is this transformer specifically designed for airport applications?
A: Leilang Electric's 1600KVA airport transformer features enhanced reliability, on-load tap changing for uninterrupted power, and 200KV BIL protection—all essential for supporting 24/7 critical airport operations including navigation systems, runway lighting, and terminal power.
Q: What is the benefit of the on-load tap changer (OLTC) in airport applications?
A: The OLTC allows voltage regulation without power interruption, ensuring stable voltage output even during peak load periods. This prevents equipment damage and downtime for sensitive aviation systems that require constant, reliable power.
Q: What does the 200KV BIL rating mean for airport power systems?
A: A 200KV Basic Impulse Level rating means the transformer can withstand high-voltage transient surges from lightning strikes and switching operations. This is critical for airports, which are often located in open areas with high lightning exposure.
Q: How much energy can I save with the S11 ultra-low loss design?
A: The S11 series reduces no-load losses by 30% and no-load current by 70-85% compared to S9 series transformers. For a 1600KVA transformer operating 24/7, this translates to over 8,700 kWh of annual energy savings, significantly lowering operational costs.
Q: How does the fully sealed tank design extend transformer life?
A: The fully sealed structure prevents transformer oil from contacting air, eliminating oxidation and moisture absorption. This reduces oil degradation, extends insulation life, and minimizes maintenance requirements, resulting in a longer service life and lower total cost of ownership.
Q: What certifications and quality control measures ensure the reliability of this transformer?
A: Our transformers are CE certified and manufactured in compliance with IEC 60076, ISO 9001, and ISO 14001 standards. Each unit undergoes 15+ quality tests including BIL testing, OLTC operation testing, and comprehensive performance verification before shipment.
